CBSE 12th Physics (Term 1) Paper 2021-22
CBSE 2021 Previous Year
3 hDuration
42Total Marks
55Questions
1Sections
Instructions
General instructions for this test:
- Duration: 3 h. The timer starts as soon as you begin and cannot be paused.
- Total questions: 55 across 1 section(s); maximum marks: 42.
- You are allowed 1 attempt(s) at this test.
- Use the question palette on the right to navigate. Answered questions are highlighted in green; questions marked for review are highlighted in yellow.
- Each question's marking scheme (correct / wrong) is shown on the question card. Unanswered questions receive zero marks.
- Switching tabs, exiting full-screen, or attempting to copy text is monitored. Repeated tab-switching may auto-submit the test.
- Your answers autosave as you navigate. Click Submit Test when you are done. The test will be auto-submitted when the timer expires.
No exam-specific instructions were provided for this paper.
Paper Structure
Physics
Physics
Q1.
mcq single
+0.77 / 0
Which of the following has negative temperature coefficient of resistivity?
Q2.
mcq single
+0.77 / 0
A coil of area 100 cm^(2) is kept at an angle of 30$$^\circ$$ with a magnetic field of 10^($$-$$1) T. The magnetic field is reduced to zero in 10^($$-$$4) s. The induced emf in the coil is -
Q3.
mcq single
+0.77 / 0
The current in the primary coil of a pair of coils changes from 7 A to 3 A in 0.04 s. The mutual inductance between the two coils is 0.5 H. The induced emf in the secondary coil is -
Q4.
mcq single
+0.77 / 0
The self-inductance of a solenoid of 600 turns is 108 mH. The self-inductance of a coil having 500 turns with the same length, the same radius and the same medium will be
Q5.
mcq single
+0.77 / 0
Assertion (A) : The poles of a bar magnet cannot be separated.
Reason (R) : Magnetic monopoles do not exist.
Q6.
mcq single
+0.77 / 0
A bar magnet has magnetic dipole moment $$\overrightarrow M $$. Its initial position is parallel to the direction of uniform magnetic field $$\overrightarrow B $$. In this position, the magnitudes of torque and force acting on it respectively are -
Q7.
mcq single
+0.77 / 0
The horizontal component of earth's magnetic field at a place is 0.2 G whereas it's total magnetic field is 0.4 G. The angle of dip at the place is
Q8.
mcq single
+0.77 / 0
Which of the following statements is correct?
Q9.
mcq single
+0.77 / 0
Assertion (A) : A negative charge in an electric field moves along the direction of the electric field.
Reason (R) : On a negative charge a force acts in the direction of the electric field.
Q10.
mcq single
+0.77 / 0
A negatively charged object X is repelled by another charged object Y. However an object Z is attracted to object Y. Which of the following is the most possibility for the object Z?
Q11.
mcq single
+0.77 / 0
A + 3.0 nC charge Q is initially at rest at a distance of r~1~ = 10 cm from a + 5.0 nC charge q fixed at the origin. The charge Q is moved away from q to a new position at r~2~ = 15 cm. In this process work done by the field is
Q12.
mcq single
+0.77 / 0
An object has charge of 1 C and gains 5.0 $$\times$$ 10^(18) electrons. The net charge on the object becomes -
Q13.
mcq single
+0.77 / 0
A square sheet of side 'a' is lying parallel to XY plate at z = a. The electric field in the region is $$\overrightarrow E = c{z^2}\widehat k$$. The electric flux through the sheet is
Q14.
mcq single
+0.77 / 0

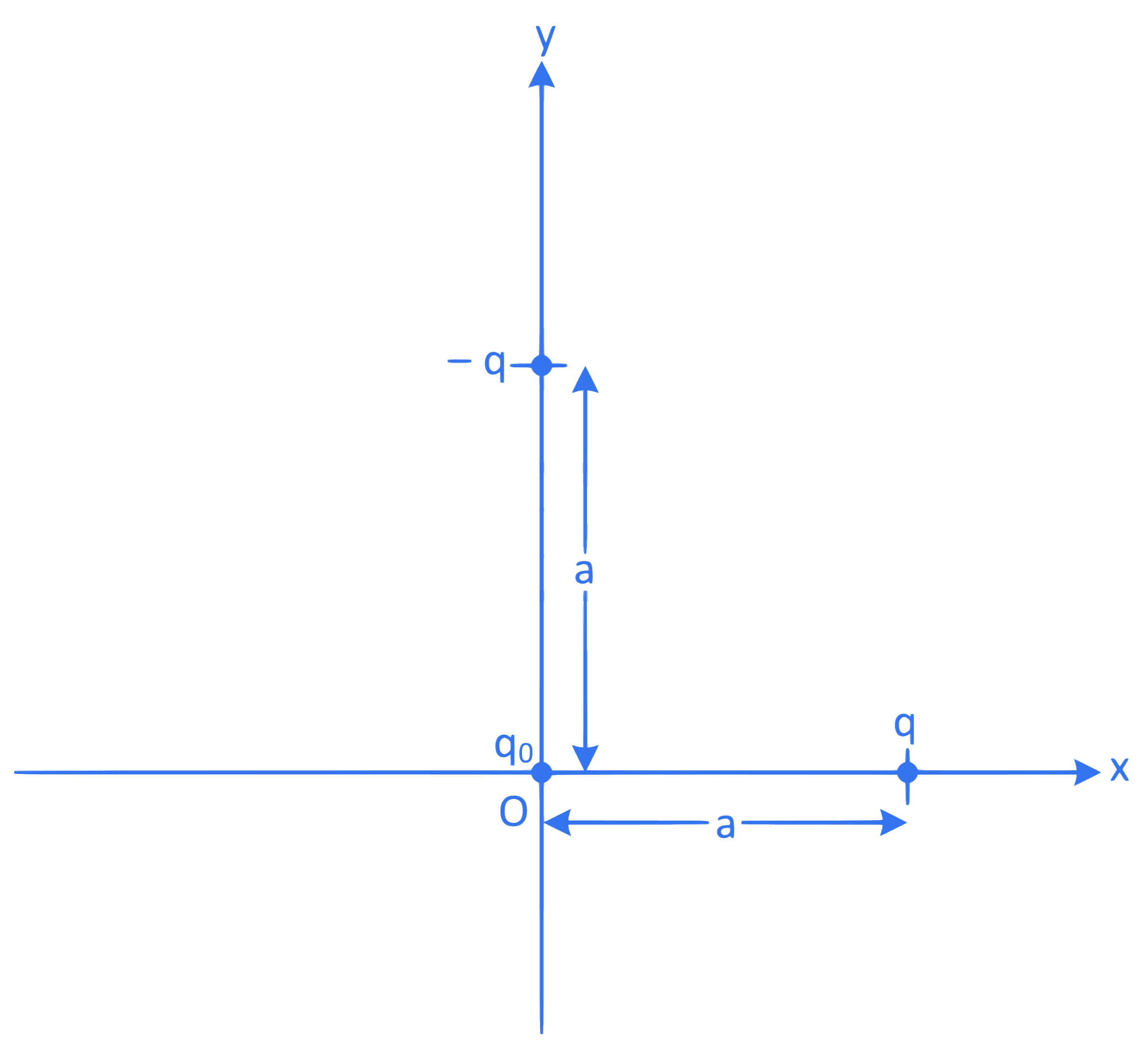

Three charges q, $$-$$q and q~0~ are placed as shown in figure. The magnitude of the net force on the charge q~0~ at point O is $$\left[ {k = {1 \over {(4\pi { \in _0})}}} \right]$$
Q15.
mcq single
+0.77 / 0
The electric potential V at any point (x, y, z) is given by V = 3x^(2) where x is in metres and V in volts. The electric field at the point (1 m, 0, 2m) is -
Q16.
mcq single
+0.77 / 0
The magnitude of electric field due to a point charge 2q, at distance r is E. Then the magnitude of electric field due to a uniformly charged thin spherical shell of radius R with total charge q at a distance $${r \over 2}(r > > R)$$ will be
Q17.
mcq single
+0.77 / 0
In an experiment three microscopic latex spheres are sprayed into a chamber and became charged with charges +3e, +5e and $$-$$3e respectively. All the three spheres came in contact simultaneously for a moment and got separated. Which one of the following are possible values for the final charge on the spheres?
Q18.
mcq single
+0.77 / 0

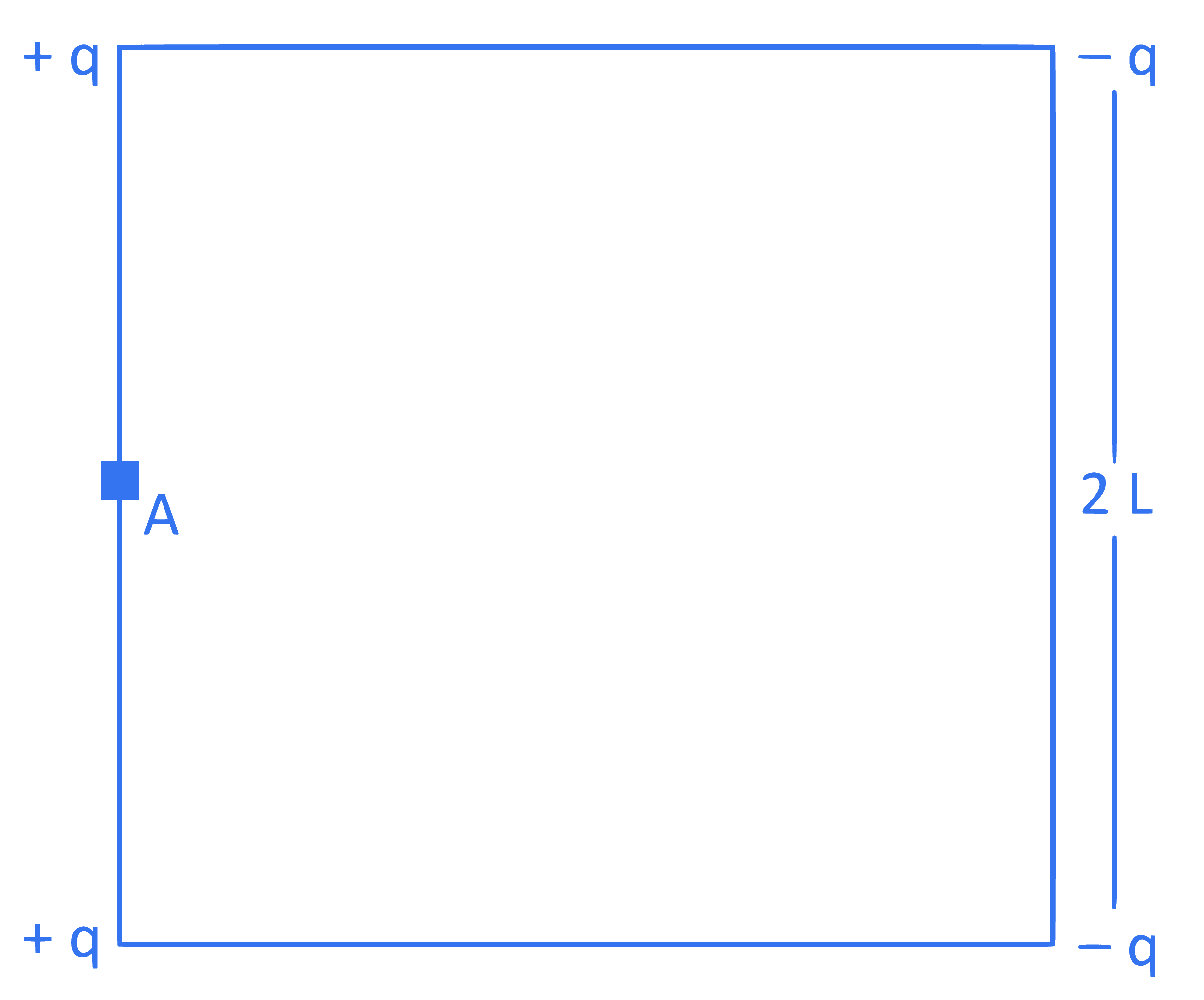

Four charges $$-$$q, $$-$$q, +q and +q are placed at the corners of a square of side 2 L is shown in figure. The electric potential at point A midway between the two charges +q and +q is -
Q19.
mcq single
+0.77 / 0
Equipotentials at a large distance from a collection of charges whose total sum is not zero are -
Q20.
mcq single
+0.77 / 0

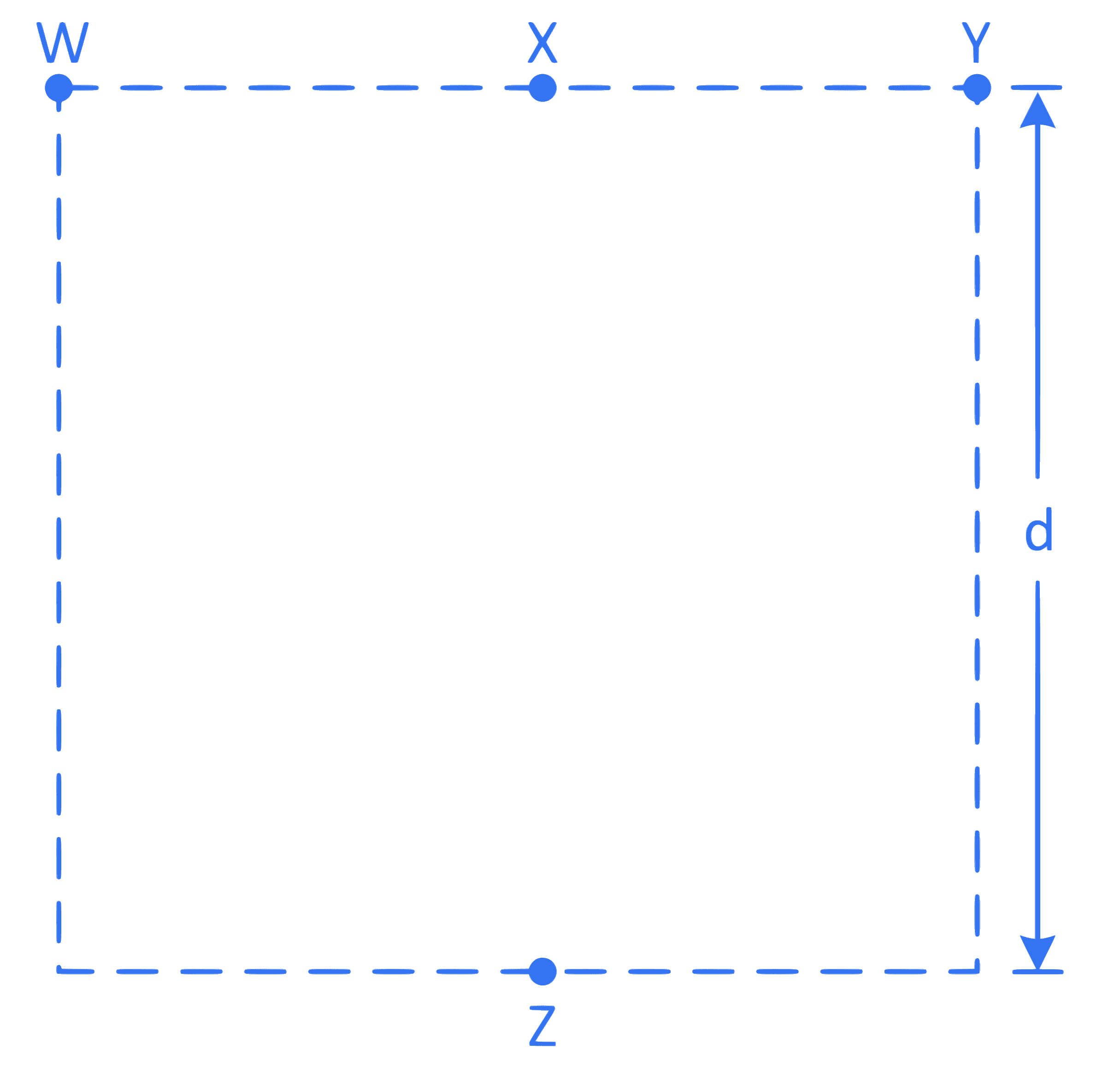

Four objects W, X, Y and Z, each with charge +q are held fixed at four points of a square of side d as shown in the figure. Objects X and Z are on the midpoints of the sides of the square. The electrostatic force exerted by object W on object X is F. Then the magnitude of the force exerted by object W on Z is
Q21.
mcq single
+0.77 / 0
Two charges 14 $$\mu$$C and $$-$$4 $$\mu$$C are placed at ($$-$$12 cm, 0, 0) and (12 cm, 0, 0) in an external electric field $$E = \left( {{B \over {{r^2}}}} \right)$$, where B = 1.2 $$\times$$ 10^(6) N/(cm^(2)) and r is in metres. The electrostatic potential energy of the configuration is
Q22.
mcq single
+0.77 / 0
Which of the diagrams correctly represents the electric field between two charged plates if a neutral conductor is placed in between the plates?
Q23.
mcq single
+0.77 / 0
A variable capacitor is connected to a 200 V battery. If its capacitance is changed from 2 $$\mu$$F to X $$\mu$$F, the decrease in energy of the capacitor is 2 $$\times$$ 10^($$-$$2) J. The value of X is -
Q24.
mcq single
+0.77 / 0
The magnetic field at the centre of a current carrying circular loop of radius R is B~1~. The magnetic field at a point on its axis at a distance R from the centre of the loop is B~2~. Then the ratio (B~1~ / B~2~) is
Q25.
mcq single
+0.77 / 0
A current carrying wire kept in a uniform magnetic field, will experience a maximum force when it is
Q26.
mcq single
+0.77 / 0
A straight conducting rod of length l and mass m is suspended in a horizontal plane by a pair of flexible strings in a magnetic field of magnitude B. To remove the tension in the supporting strings, the magnitude of the current in the wire is
Q27.
mcq single
+0.77 / 0
A proton and an alpha particle move in circular orbits in a uniform magnetic field. Their speeds are in the ratio of 9 : 4. The ratio of radii of their circular orbits $$\left( {{{{r_p}} \over {{r_{alpha}}}}} \right)$$ is
Q28.
mcq single
+0.77 / 0
Assertion (A) : When radius of a current carrying loop is doubled, its magnetic moment becomes four times.
Reason (R) : The magnetic moment of a current carrying loop is directly proportional to the area of the loop.
Q29.
mcq single
+0.77 / 0
Two wires carrying currents I~1~ and I~2~ lie, one slightly above the other, in a horizontal plane as shown in figure. The region of vertically upward strongest magnetic field is
Q30.
mcq single
+0.77 / 0
A constant current is flowing through a solenoid. An iron rod is inserted in the solenoid along its axis. Which of the following quantities will not increase?
Q31.
mcq single
+0.77 / 0
Two parallel conductors carrying current of 4.0 A and 10.0 A are placed 2.5 cm apart in vacuum. The force per unit length between them is -
Q32.
mcq single
+0.77 / 0

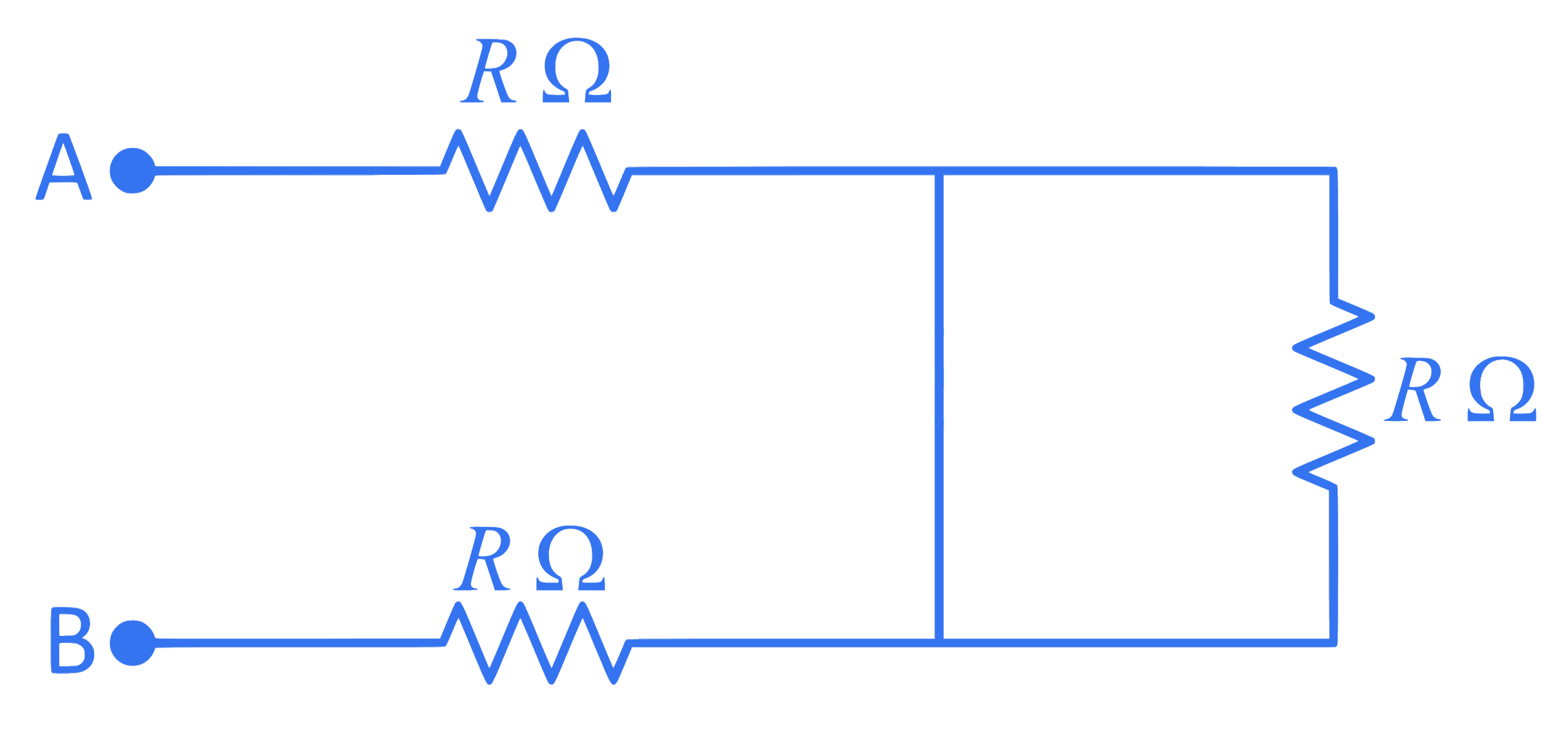

The equivalent resistance between A and B of the network shown in figure is
Q33.
mcq single
+0.77 / 0
In a dc circuit the direction of current inside the battery and outside the battery respectively are -
Q34.
mcq single
+0.77 / 0
If n, e, $$\tau$$ and m have their usual meanings, then the resistance of a wire of length l and cross-sectional area A is given by -
Q35.
mcq single
+0.77 / 0
If an ammeter is to be used in place of a voltmeter, then we must connect with the ammeter a -
Q36.
mcq single
+0.77 / 0
**Passage:**
Case Study :
An experiment was set up with the circuit diagram shown in figure. Given that R~1~ = 10 $$\Omega$$, R~2~ = R~3~ = 5 $$\Omega$$, r = 0 $$\Omega$$ and E = 5 V
---
The power dissipated in R~1~ is -
---
The power dissipated in R~1~ is -
Q37.
mcq single
+0.77 / 0
Kirchhoff's first rule $$\Sigma$$I = 0 and second rule $$\Sigma$$IR = $$\Sigma$$E (where the symbols have their usual meanings) are respectively based on -
Q38.
mcq single
+0.77 / 0
The electric power consumed by a 220 V $$-$$ 100 W bulb when operated at 110 V is
Q39.
mcq single
+0.77 / 0
**Passage:**
Case Study :
An experiment was set up with the circuit diagram shown in figure. Given that R~1~ = 10 $$\Omega$$, R~2~ = R~3~ = 5 $$\Omega$$, r = 0 $$\Omega$$ and E = 5 V
---
The current through branch bg is -
---
The current through branch bg is -
Q40.
mcq single
+0.77 / 0
Two sources of equal emf are connected in series. This combination is, in turn connected to an external resistance R. The internal resistance of two sources are r~1~ and r~2~ (r~2~ > r~1~). If the potential difference across the source of internal resistance r~2~ is zero, then R equals to -
Q41.
mcq single
+0.77 / 0
Assertion (A) : Higher the range, lower is the resistance of an ammeter.
Reason (R) : To increase the range of an ammeter additional shunt is added in series to it.
Q42.
mcq single
+0.77 / 0
**Passage:**
Case Study :
An experiment was set up with the circuit diagram shown in figure. Given that R~1~ = 10 $$\Omega$$, R~2~ = R~3~ = 5 $$\Omega$$, r = 0 $$\Omega$$ and E = 5 V
---
The potential difference across R~3~ is -
---
The potential difference across R~3~ is -
Q43.
mcq single
+0.77 / 0
A potential difference of 200 V is maintained across a conductor of resistance 100 $$\Omega$$. The number of electrons passing through it in 1s is
Q44.
mcq single
+0.77 / 0
**Passage:**
Case Study :
An experiment was set up with the circuit diagram shown in figure. Given that R~1~ = 10 $$\Omega$$, R~2~ = R~3~ = 5 $$\Omega$$, r = 0 $$\Omega$$ and E = 5 V
---
The points with the same potential are -
---
The points with the same potential are -
Q45.
mcq single
+0.77 / 0
A car battery is charged by a 12 V supply, and energy stored in it is 7.20 $$\times$$ 10^(5) J. The charge passed through the battery is -
Q46.
mcq single
+0.77 / 0
When an alternating voltage E = E~o~ sin $$\omega$$t is applied to a circuit, a current $$I = {I_o}\sin \left( {\omega t + {\pi \over 2}} \right)$$ flows through it. The average power dissipated in the circuit is
Q47.
mcq single
+0.77 / 0
In a circuit the phase difference between the alternating current and the source voltage is $${\pi \over 2}$$. Which of the following cannot be the elements of the circuit?
Q48.
mcq single
+0.77 / 0
The voltage across a resistor, an inductor, and a capacitor connected in series to an ac source are 20 V, 15 V and 30 V respectively. The resultant voltage in the circuit is
Q49.
mcq single
+0.77 / 0
The rms current in a circuit connected to a 50 Hz ac source is 15 A. The value of the current in the circuit $$\left( {{1 \over {600}}} \right)$$s after the instant the current is zero, is -
Q50.
mcq single
+0.77 / 0
The core of a transformer is laminated to reduce the effect of
Q51.
mcq single
+0.77 / 0
A 15 $$\Omega$$ resistor, an 80 mH inductor and a capacitor of capacitance C are connected in series with a 50 Hz ac source. If the source voltage and current in the circuit are in phase, then the value of capacitance is
Q52.
mcq single
+0.77 / 0
The impedance of a series LCR circuit is -
Q53.
mcq single
+0.77 / 0
Assertion (A) : A step-up transformer cannot be used as a step-down transformer.
Reason (R) : A transformer works only in one direction.
Q54.
mcq single
+0.77 / 0
A 300 $$\Omega$$ resistor and a capacitor of $$\left( {{{25} \over \pi }} \right)$$ $$\mu$$F are connected in series to a 200 V $$-$$ 50 Hz ac source. The current in the circuit is -
Q55.
mcq single
+0.77 / 0
A circuit is connected to an ac source of variable frequency. As the frequency of the source is increased, the current first increases and then decreases. Which of the following combinations of elements is likely to comprise the circuit?
