GATE ECE 2026

For a lossless passive two-port network, $\left|S_{11}\right|$ and $\left|S_{21}\right|$ intersect at -3 dB . For a lossy passive two-port network, $\left|S_{11}\right|$ and $\left|S_{21}\right|$ intersect at -4 dB .. The percentage of power dissipated in the lossy network at the intersection frequency is $\_\_\_\_$ . (rounded off to two decimal places)

A complex load (in $\Omega$ ) is represented as $\Gamma_L=0.5 \angle 30^{\circ}$ on the Smith chart. A co-axial cable with a characteristic impedance of $50 \Omega$ is connected to the load. The new input impedance of the load now moves to a diametrically opposite point on the same $\Gamma$ circle on the Smith chart. Which option is the nearest input impedance of the cable connected load (in $\Omega$ )?

The electric field of a monochromatic plane wave travelling in a lossless isotropic and homogenous medium is given by $$ \vec{E}(z, t)=E_0[\hat{x} \cos (\omega t-k z)+\hat{y} \sin (\omega t-k z)] $$ in a right-handed orthogonal co-ordinate system. Which of the following is the correct polarization of the electromagnetic wave?

Which option(s) represents/ represent the dielectric loss tangent of a substrate?

Consider the Friis' transmission equation $P_R=\left(P_T G_T G_R \lambda^2\right) /(4 \pi D)^2$, where $P_R$ and $P_T$ are the received and the transmitted powers, respectively. $G_T$ and $G_R$ are the gain of transmitting and receiving antennas, respectively, $D$ is the distance between the transmitting and receiving antennas, and $\lambda$ is the wavelength in free space. Given: $G_T=G_R=1.0, \lambda=0.30 \mathrm{~m}$ and $P_T=+10 \mathrm{dBm}$. Choose the distance (D), in km , from the following options at which the received power, $P_R=-90 \mathrm{dBm}$ ?

The cutoff frequency (in GHz ) for the dominant $\mathrm{TE}_{10}$ mode of an air-filled rectangular waveguide of inner dimension 0.28 inch $\times 0.14$ inch is $\_\_\_\_$ . (rounded off to two decimal places).

Consider the circuit shown in the Figure with $V_i=3 \mathrm{~V}$ and $V_{c c}=12 \mathrm{~V}$. Assume $V_{B E}=0.7 \mathrm{~V}$ and $\beta_{\mathrm{dc}}=99$ for the BJT. Which of the following options is the correct value of the current $I_o$ ?

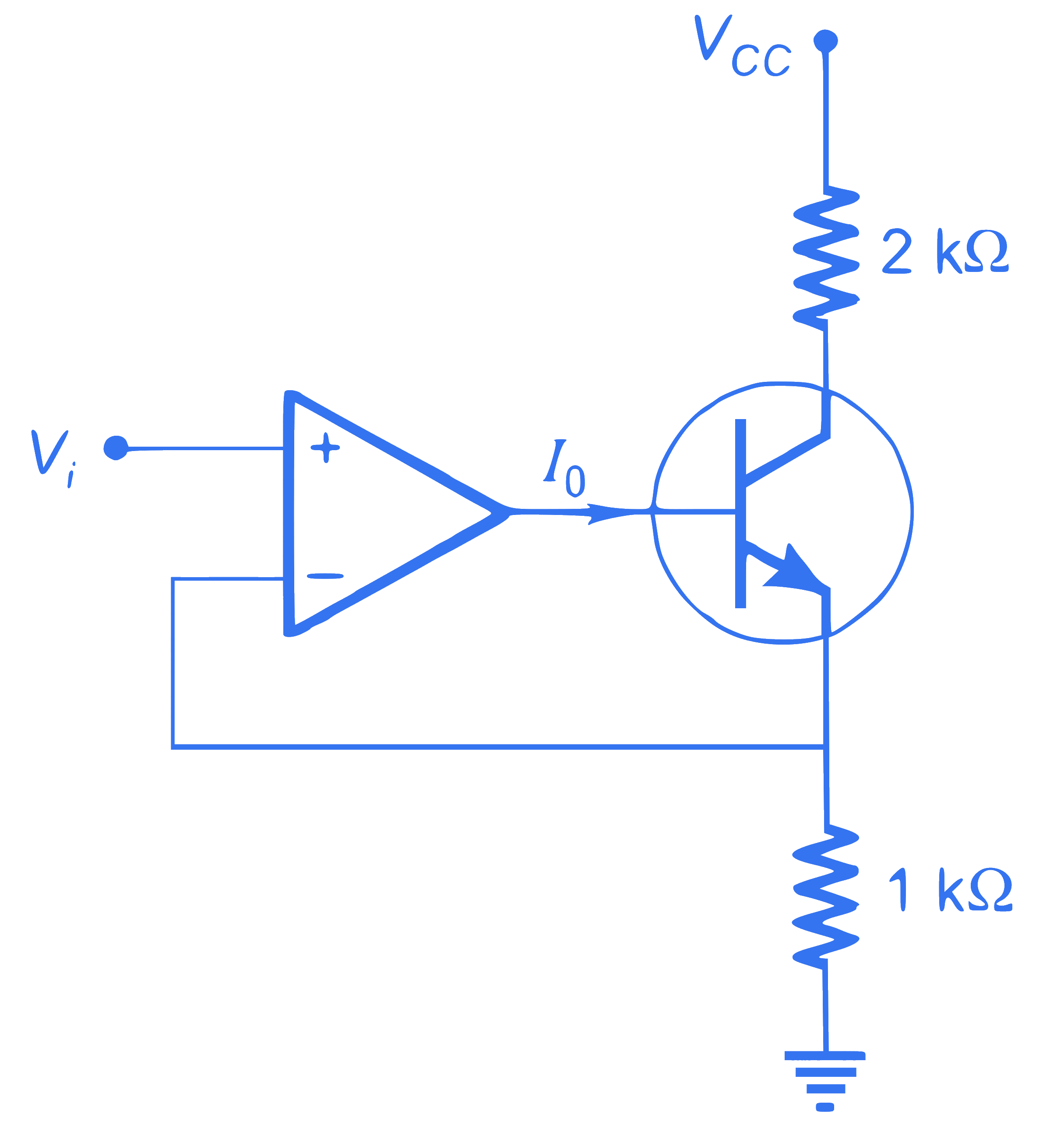

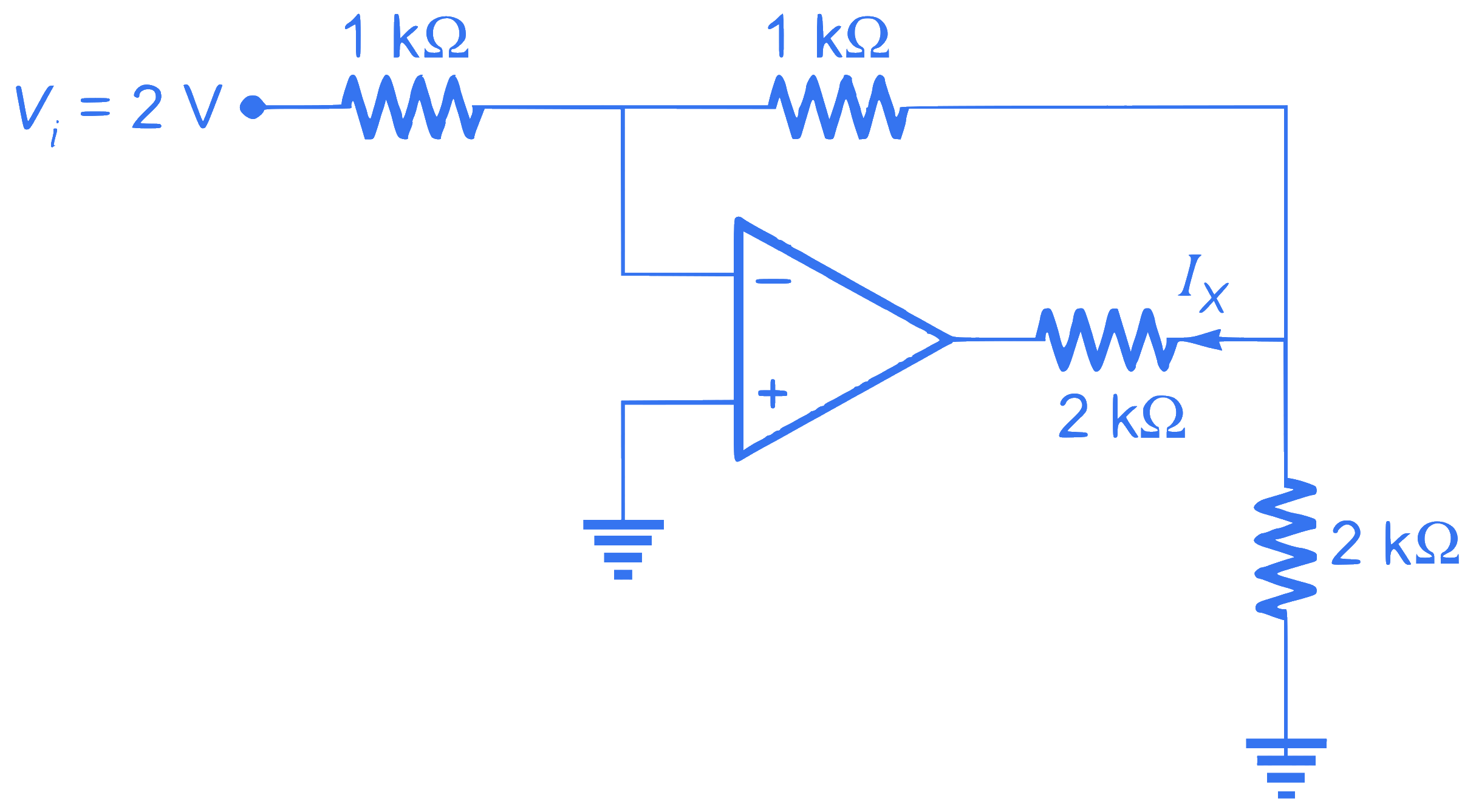

A circuit using an ideal OP-AMP is shown in the Figure. Which of the following options gives the correct value of the current $I_\chi$ ?

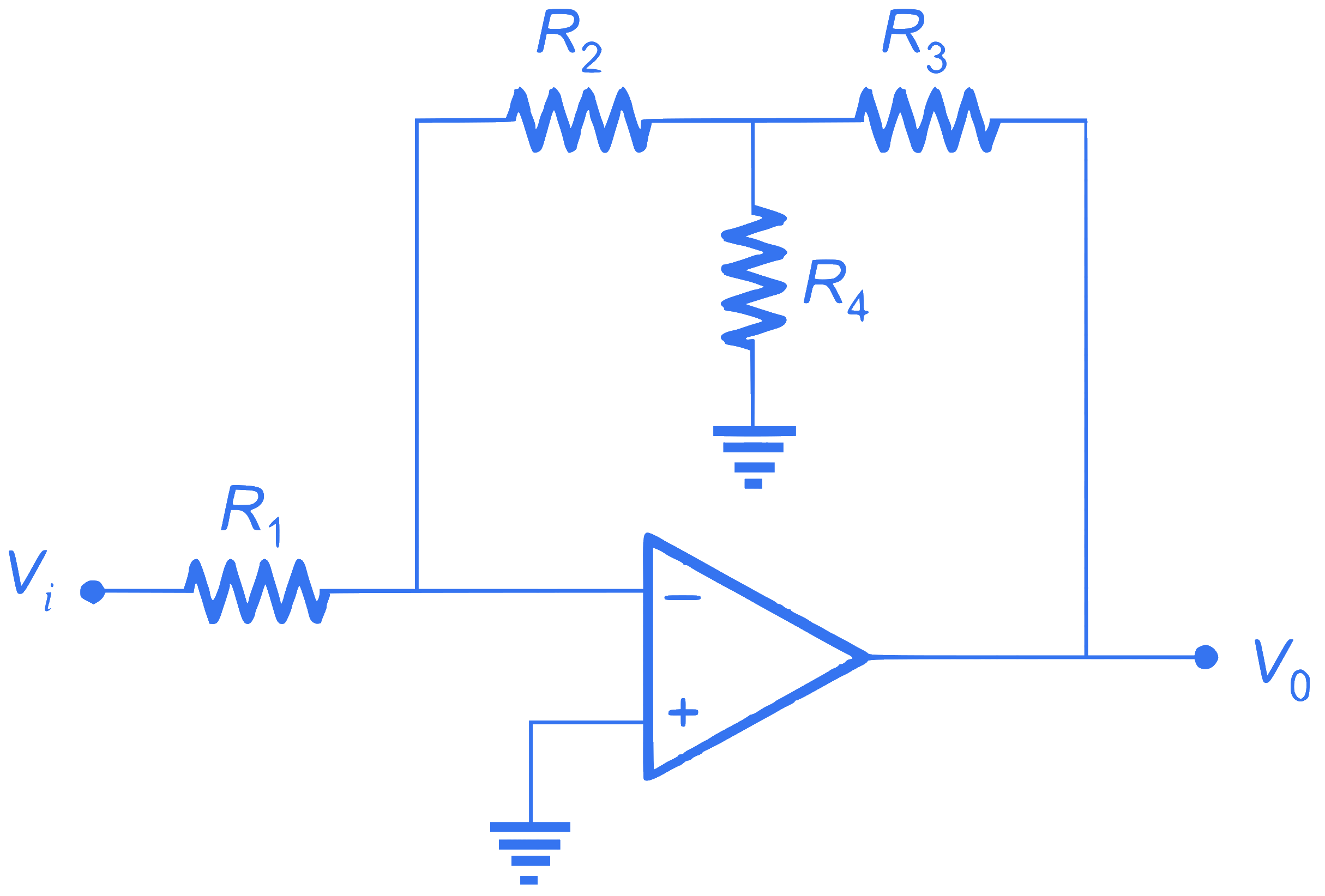

Consider an ideal OP-AMP circuit as shown in the Figure. The resistances $R_1=R_2=R_3=R_4=50 \mathrm{k} \Omega$. The magnitude of the closed loop gain is $\_\_\_\_$ . (rounded off to two decimal places)

The ideal OP-AMP circuit shown in the Figure produces output voltage $V_o=x$ when the Switch, $S$, is open. Which of the options represents the output voltage when S is closed?

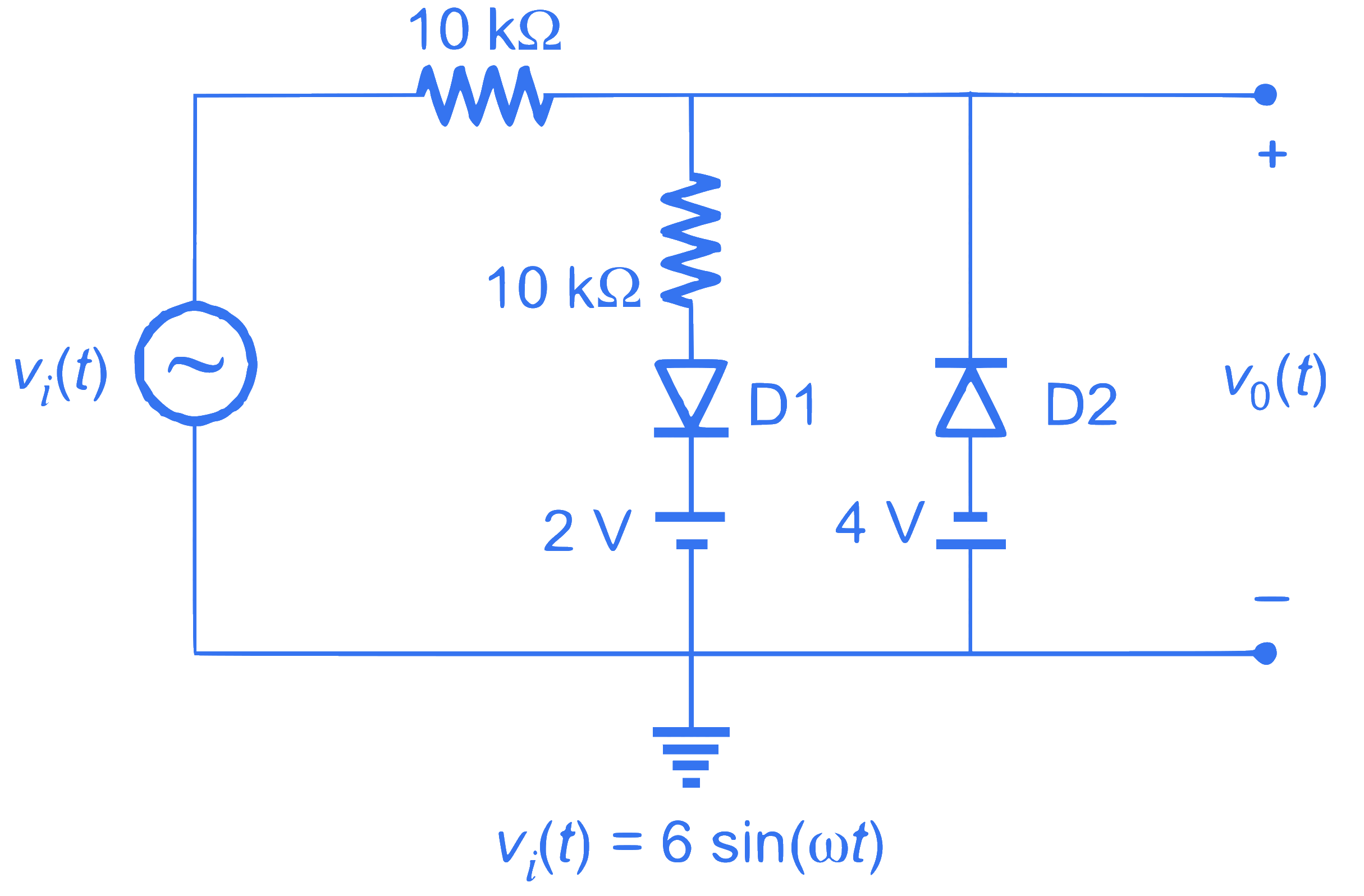

Consider the ideal diodes D1 and D2 as shown in the Figure with cut-in voltage $V_\gamma=$ 0 Volt and $v_i(t)$ is in Volt. The maximum voltage (Volt) of the output $v_o(t)$ is $\_\_\_\_$ . (rounded off to two decimal places)

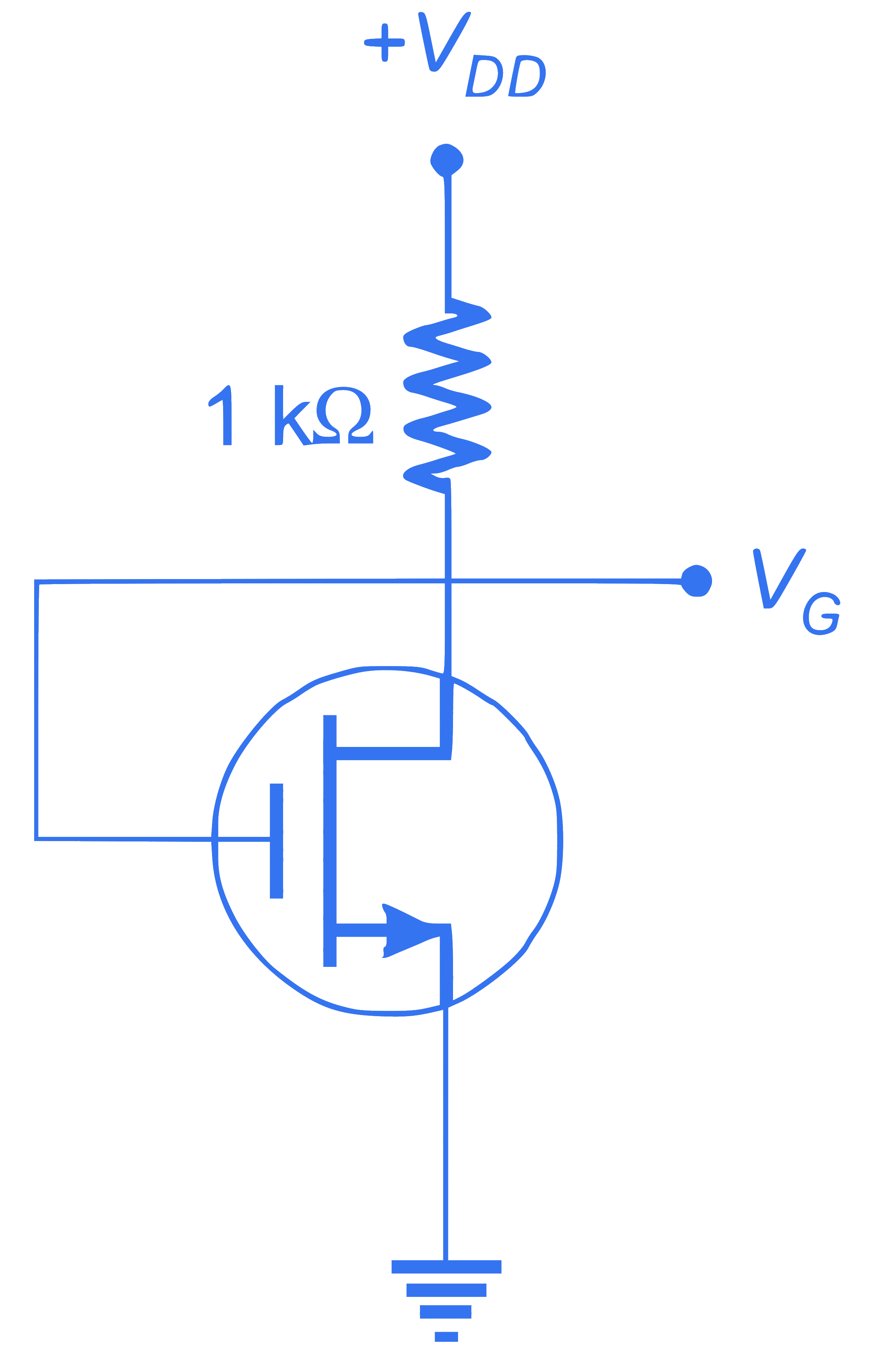

An $n$-channel MOSFET is connected as shown in the Figure. Assume $\mathrm{V}_{\mathrm{TH}}=1 \mathrm{~V}, V_{D D}=5 \mathrm{~V}$, and $\mu C_{O x}\left(\frac{W}{L}\right)=2 \mathrm{mAV}^{-2}$ and neglect channel length modulation effects. The gate voltage ( $V_G$ ) of the n-channel MOSFET (in Volt) is $\_\_\_\_$ . (rounded off to two decimal places)

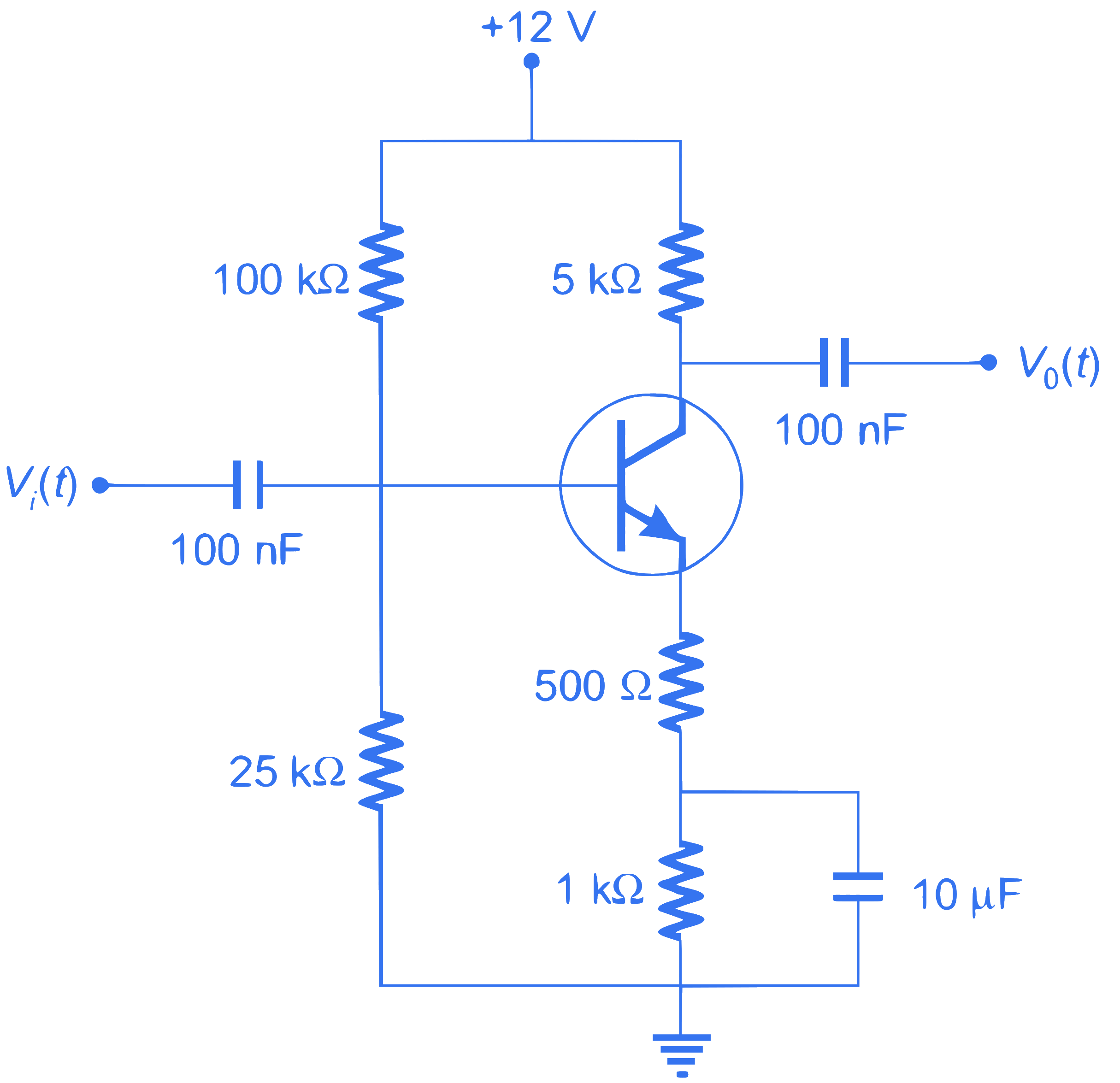

A small signal source, $V_i(t)=A \cos \left(10^5 t\right)+B \sin \left(10^7 t\right)$ is applied to a BJT circuit as shown in the Figure. Assume zero source resistance, $V_{B E}=0.7 \mathrm{~V}, \beta_{\mathrm{dc}}=99$, Early voltage $=100 \mathrm{~V}$ and Thermal voltage $=25 \mathrm{mV}$. Effect of internal parasitic capacitances of the BJT may be neglected. Which expression is the best approximation of the output voltage $V_o(t)$ ?

Two analog signals $x_1(t)$ and $x_2(t)$ ( $t$ in second), are sampled at a rate $F_s=40 \mathrm{~Hz}$, where $x_1(t)=\cos (20 \pi t), t \geq 0$, and $x_2(t)=\cos (100 \pi t), t \geq 0$. The first ten samples (starting from $t=0$ ) are considered for the analysis. Which of the following statements is TRUE?

Consider a real signal $x(t),-\infty<t<\infty$, such that $x(t)=0$ for $t<0, x(t)=2$ for $0 \leq t<1$ and $x(t)=0$ for $t \geq 1$. Let $E[x(t)]=\int_{-\infty}^{\infty}[x(t)]^2 d t$. Which of the following options correctly represents the ratio, $E[x(t)] / E[3 x(-3 t+)]$ ?

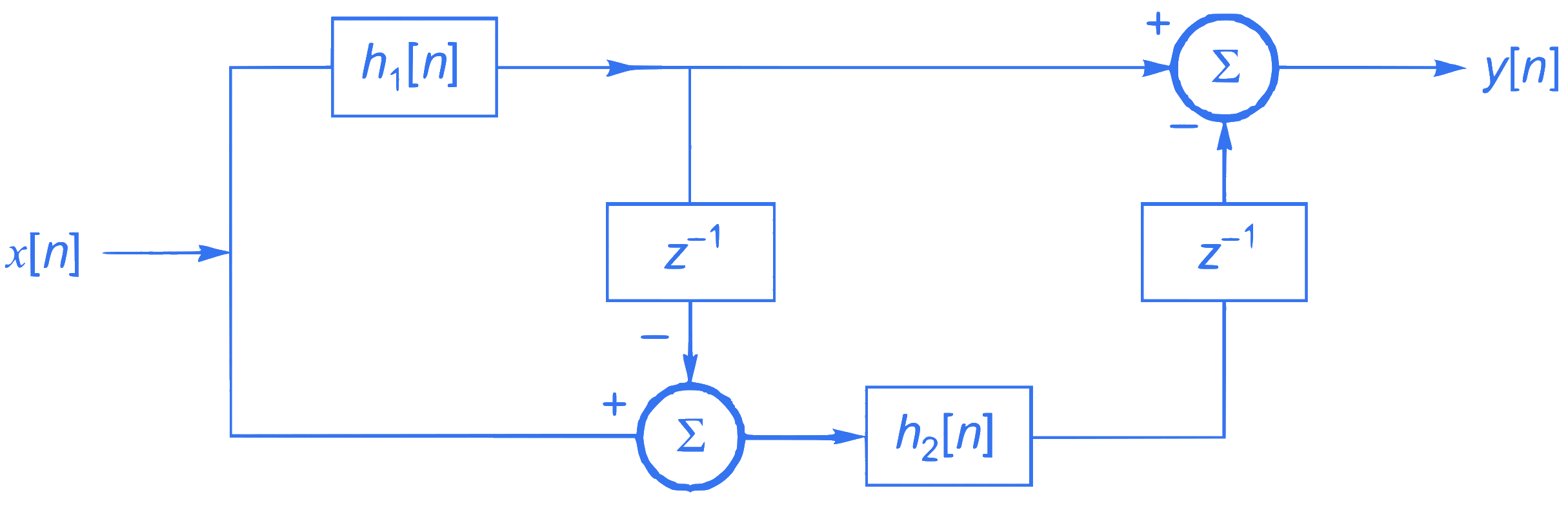

Consider the discrete time system $(S)$ with input $x[n]$ and output $y[n]$ as shown in the Figure. The two sub-systems represented by their impulse responses $h_1[n]$ and $h_2[n]$ are linear and time invariant. Which of the following statements is necessarily TRUE?

Consider a real baseband signal $x(t)=e^{-2 t}$, for $t$ (in seconds) $\geq 0$. If $99 \%$ of energy of $x(t)$ lies within $B \mathrm{~Hz}$, then which of the following options is TRUE for the value of $B$ ?

The response of a discrete time system $\mathrm{y}[\mathrm{n}]$ obeys the following relation: $$ y[n]=\frac{5}{6} y[n-1]-\frac{1}{6} y[n-2]+x[n] . $$ The input to the system is $x[n]=\delta[n]-\frac{1}{3} \delta[n-1]$. Which of the following options is TRUE for $y[n]$ ?

The Laplace Transform of the signal $x(t)=u(t-2) *(t u(t))$ is given by which of the following expressions? ["*" represents convolution operator]

The continuous time signal $x(t)$ is real, periodic with period $T$ and satisfies the Dirichlet conditions. The Fourier series representation of $x(t)=\sum_{n=-\infty}^{\infty} a_n e^{j\left(\frac{2 \pi n t}{T}\right)}$ and $x(t)$ satisfies the following: $$ x\left(t-\frac{T}{2}\right)=-x(t) $$ For any integer $m$, which of the following options is correct?

Let $x_1(t)=\cos (2 \pi n t)$ and $x_2(t)=2 \sin (4 \pi n t)$ represent two sinusoids for a positive integer $n$ and $-\infty<t<\infty$. Which of the following statements about $x_1(t)$ and $x_2(t)$ is/are valid?

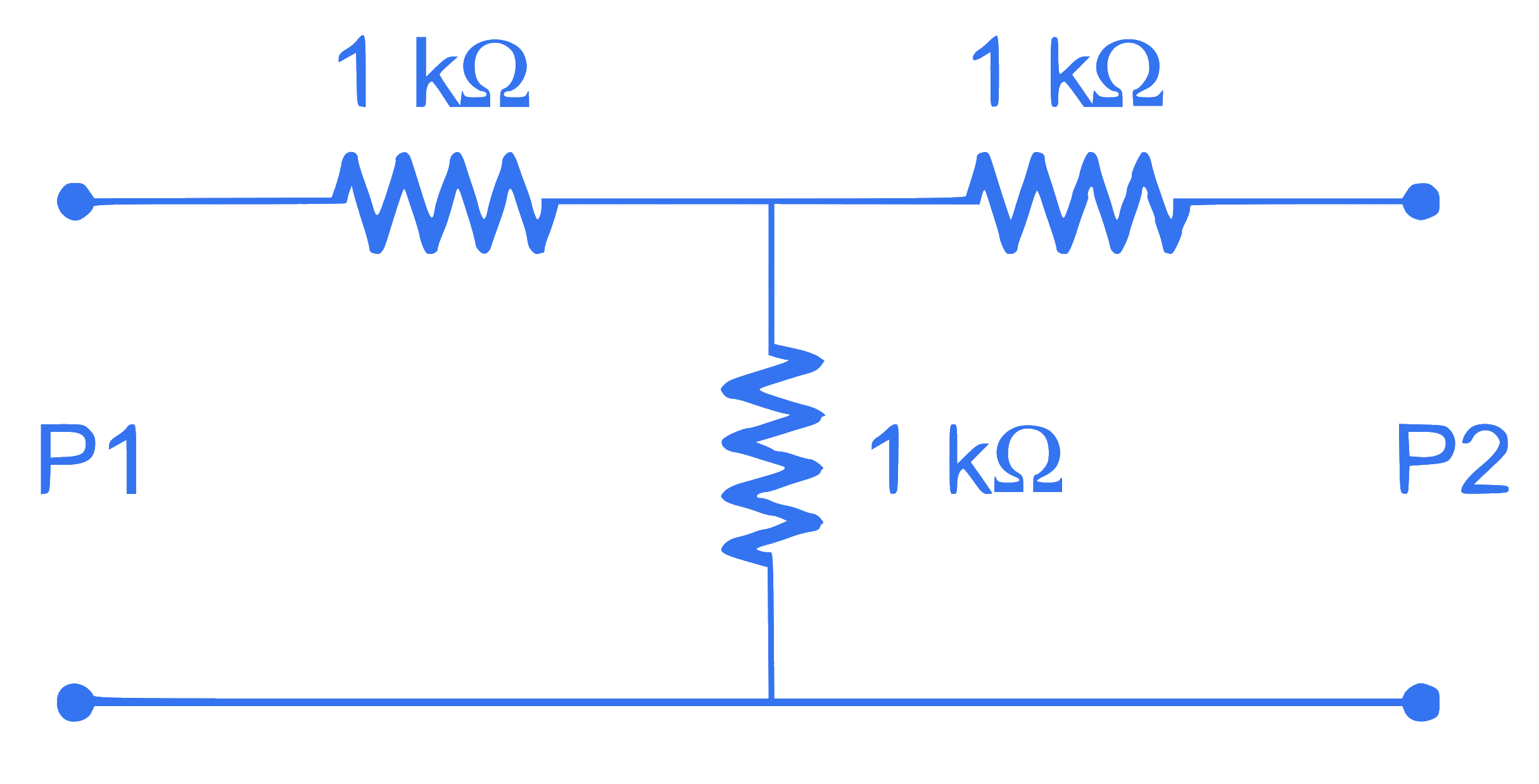

Consider the two-port network as shown in the Figure. Which of the following options provides the correct set of values of $A, B, C$ and $D$ parameters?

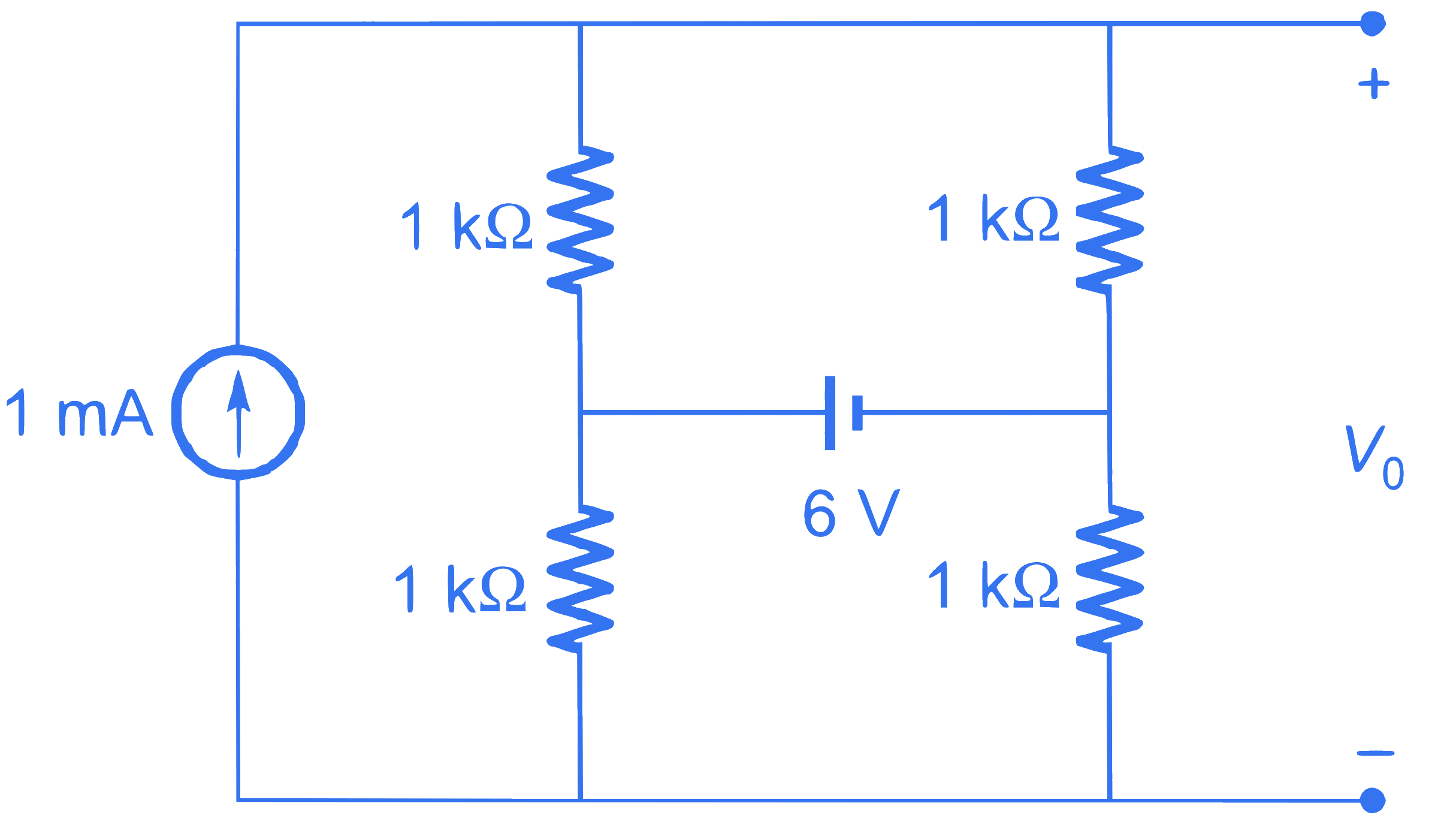

The output voltage $V_o$ (in Volt) for the network given in the Figure is $\_\_\_\_$ . (rounded off to two decimal places)

Consider the circuit shown in the Figure, where the input $v_i(t)$ is in Volt. The average power (in mW ) dissipated in the load resistance of $1 \mathrm{k} \Omega$ at the resonant frequency is $\_\_\_\_$ . (rounded off to two decimal places)

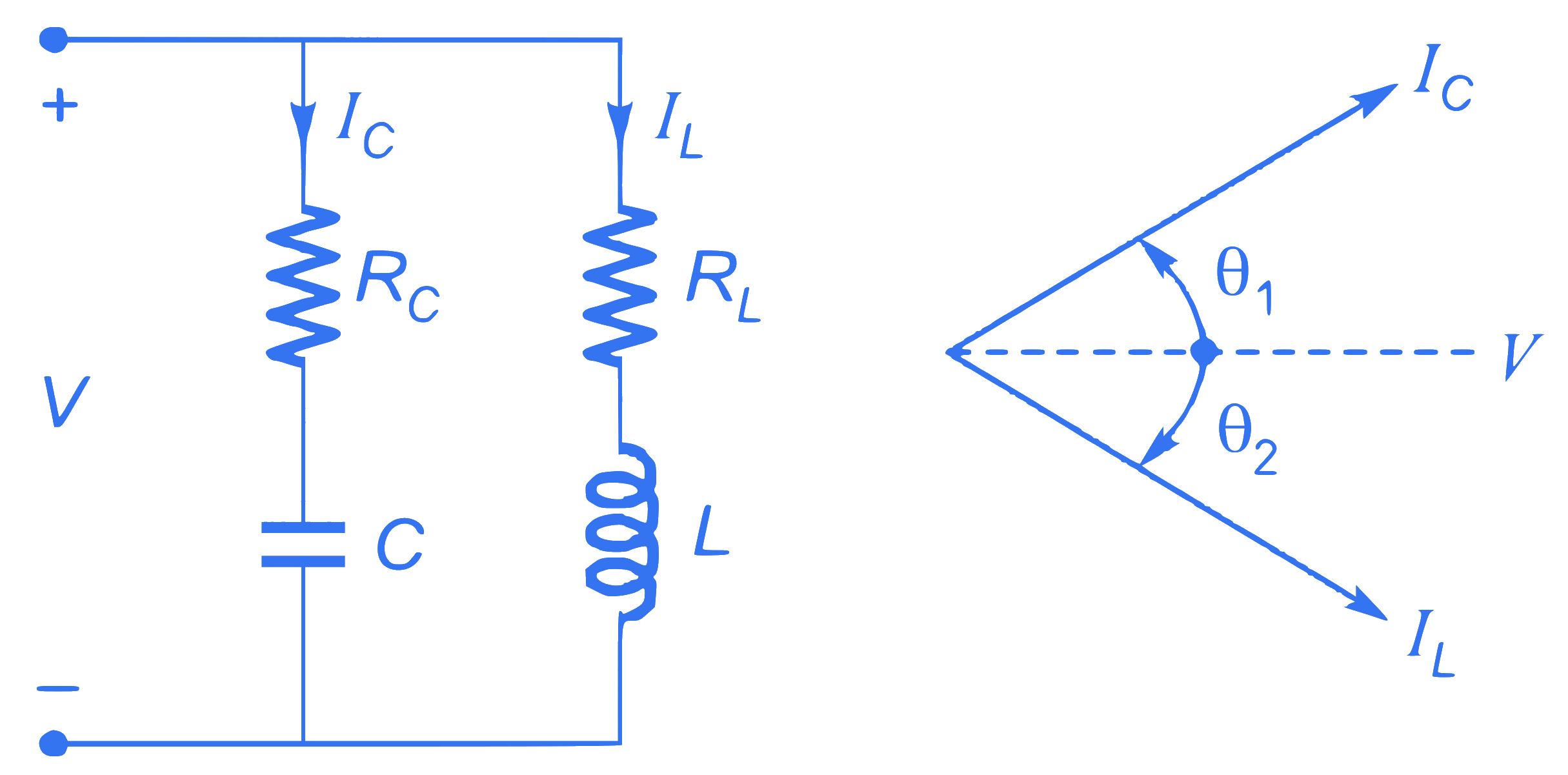

In the given circuit, $L=1 \mu \mathrm{H}$ and $C=1 \mu \mathrm{~F}$. The phasor diagram for $I_C$ and $I_L$ is also shown. Assume that the phase $\left(\theta_1+\theta_2\right)$ is $90^{\circ}$ at a frequency of 159.15 kHz . Among the following options, what is the nearest integer value of $R_C \times R_L$ ?

A surface is given by $z^2=2 x^2-y^2$ and $\vec{n}$ and $-\vec{n}$ are unit normal vectors to the surface at the point $\vec{P}=\hat{i}+\sqrt{2} \hat{k}$. Which of the following vectors can be $\vec{n}$, where $\hat{i}, \hat{j}$ and $\hat{k}$ and are the unit vectors along $x, y$ and $z$ axes, respectively?

Let $X, N, Y$ and $Z$ be random variables. The variables $X$ and $N$ are independent of each other. $X$ is uniformly distributed between -1 and $1 ; N$ follows Normal distribution with zero mean and unity variance. $Y$ and $Z$ are defined as, $Y=X+N$ and $Z=X^2+N$. Which of the following pairs represents the values of correlation between $X$ and $Y$ and that between $X$ and $Z$ ?

Consider the matrix $M=\left[\begin{array}{ccc}2 & 1 & 1 \\ 1 & 3 & 0 \\ -1 & a & b\end{array}\right]$. Which of the following options is/ are TRUE if $\operatorname{det}(M) \neq 0$ ?

Consider the differential equation $\dot{\vec{w}}=A \vec{w}$, with $\vec{w}(t=0)=\left[\begin{array}{l}1 \\ 1\end{array}\right]$. If $\vec{w}(t)=e^t \vec{u}_x+e^{-2 t} \vec{u}_y$ be the solution to the equation where $\vec{u}_x$ and $\vec{u}_y$ are unit vectors along the positive x and y axes respectively, then which of the following options is the correct matrix representing $A$ ?

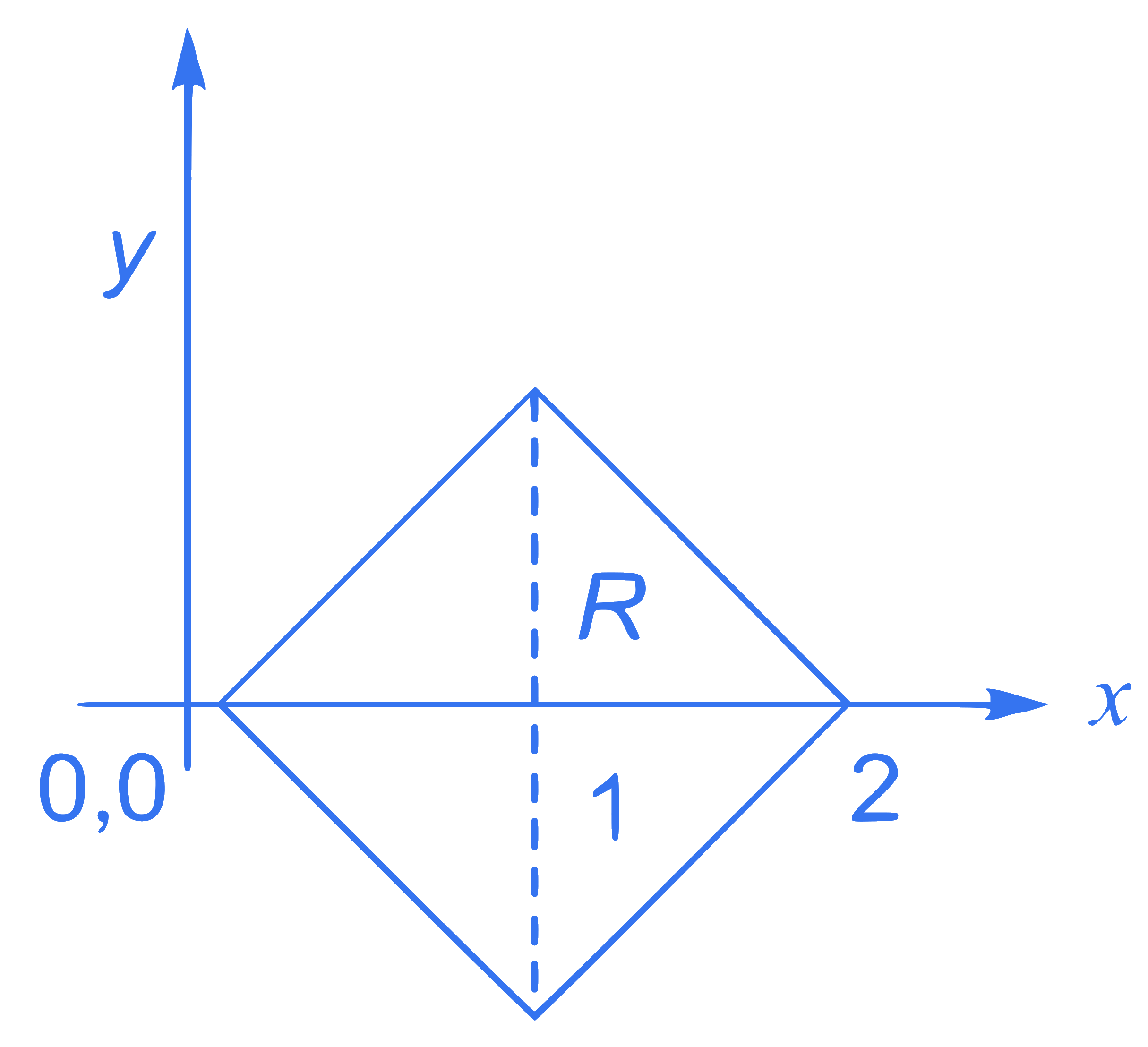

Consider the square region $R$ in the $X-Y$ plane as shown with the dark shading in the Figure. The value of $\iint_R\left(x^2+y^2-1\right) d x d y$ is $\_\_\_\_$ . (rounded off to two decimal places)

Consider the two series, $S_A$ and $S_B$, where $$ \begin{aligned} & S_A=\sum_{n=1}^{\infty} \frac{n^2}{2^n} \\ & S_A=1+\frac{1}{2}+\frac{1}{8}+\frac{1}{16}+\frac{1}{64}+\frac{1}{128}+\frac{1}{512}+\ldots \end{aligned} $$ Which of the following statements is correct for the two given series?

A control system is shown in the Figure. Which option represents the correct transfer function of the system?

Consider the unity negative feedback control system shown in the Figure. The value of gain $K(>0)$ at which the given system will remain marginally stable is $\_\_\_\_$ . (Answer in integer)

For the control system shown in the Figure, the transfer function of a plant, $G(s)=\frac{1}{(s+1)(s+2)}$ is connected in cascade with a compensator $C(s)=K(s+\alpha)$, where $K$ and $\alpha$ are positive real valued constants. Which of the following pairs ( $K, \alpha$ ) represent the correct values for the closed loop system to have poles at $(-3 \pm j \sqrt{5})$ ?

The state and output equations for a control system are: $$ \begin{aligned} & \dot{x}=\left[\begin{array}{cc} -4 & -1.5 \\ 4 & 0 \end{array}\right] x+\left[\begin{array}{l} 2 \\ 0 \end{array}\right] u \\ & y=\left[\begin{array}{ll} 1.5 & 0.625 \end{array}\right] x \end{aligned} $$ Which of the following expressions correctly represents the transfer function $\frac{Y(s)}{U(s)}$ of the system with zero initial conditions?

Among the following options, the antonym of the word 'nocturnal' is $\_\_\_\_$ .

Each one of the following clues contains a keyword that is partially filled. Clue 1: Synonym of recognize (8 letters): _ D _ NT_ FY Clue 2: A story long enough to fill a book (5 letters): $\_\_\_\_$ Clue 3: Two of something (6 letters): $\_\_\_\_$ PLE Clue 4: A fraction of something, split equally into two parts (4 letters): $\_\_\_\_$ F The first letter of each of the keywords can be rearranged to form a four-letter word. Which one of the options below is a possible choice for the four-letter word?

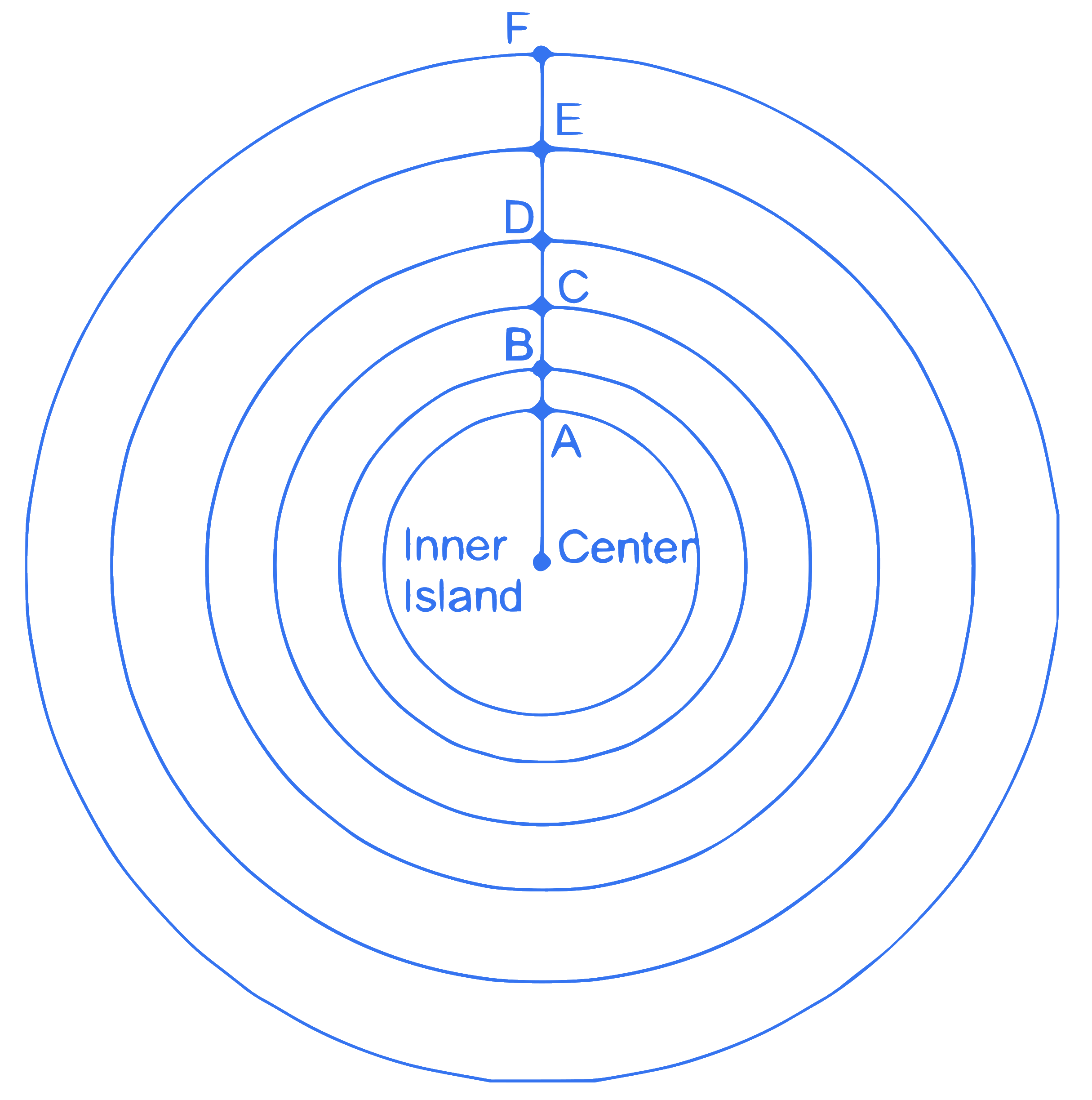

The city of Atlantis was crafted by the God of the seas, Poseidon. It was made of alternating concentric circular rings of land (shaded) and water (not shaded) as represented in the figure (not to scale). The radius of Inner Island was 2.5 stades (a unit of length used in ancient Greece). The water surrounding Inner Island was one stade wide (length AB ). This was surrounded by two pairs of alternating rings of land and water. The first pair of land and water was two stades wide each (lengths BC and CD), and the outer pair is three stades wide each (lengths DE and EF). The ratio of the surface area of the land to that of the water in the city of Atlantis is $\_\_\_\_$ (round off to two decimal places).

Real numbers $y, p$, and $n$ (all greater than 1 ) satisfy $$ \left(\log _{p^{1 / n}} y\right)\left(\log _{y^{1 / n}} p\right)=16 $$ where the logarithms are taken to the bases $p^{1 / n}$ and $y^{1 / n}$ The value of $n$ is $\_\_\_\_$

Let $P_k$ represent the perimeter of a square with sides of length $k$. The value of the expression $P_1+P_2+P_3+\ldots+P_{10}$ is $\_\_\_\_$ .

Three children P, Q, R and two grown-ups X, Y play a badminton doubles tournament. $X$ and $Y$ are parents to two of the children playing. The child of $X$ is not the same as the child of Y . Exactly one of the children does not have a parent playing in the tournament. The following rules are followed: (i) A parent and his/her child cannot be on the same team. (ii) A match can feature at most one parent and his/her child, that is, a maximum of one parent-child pair can play in a match. $$ \text { The following matches were played: } $$ $$ \begin{array}{|l|c|c|} \hline & \text { TEAM 1 } & \text { TEAM2 } \\ \hline \text { MATCH 1 } & P \text { and } X & Q \text { and } R \\ \hline \text { MATCH 2 } & P \text { and } R & X \text { and } Y \\ \hline \text { MATCH 3 } & R \text { and } X & Q \text { and } Y \\ \hline \end{array} $$ Which one of the following options is correct?

The following observation is made about the scores obtained by 100 students in an exam: 'For each student, there exists another student in the class such that their scores are at most ten marks away.' If the above statement is false, which one of the following statements is necessarily true?

The statements (S1), (S2), and (S3) pertain to the scores obtained by students in an exam. The maximum possible marks in the exam is 150. (S1) The highest score is 100. (S2) The fourth highest score is 76. (S3) There are at least four students whose scores are within 25 of each other. Which one of the following options is necessarily correct?

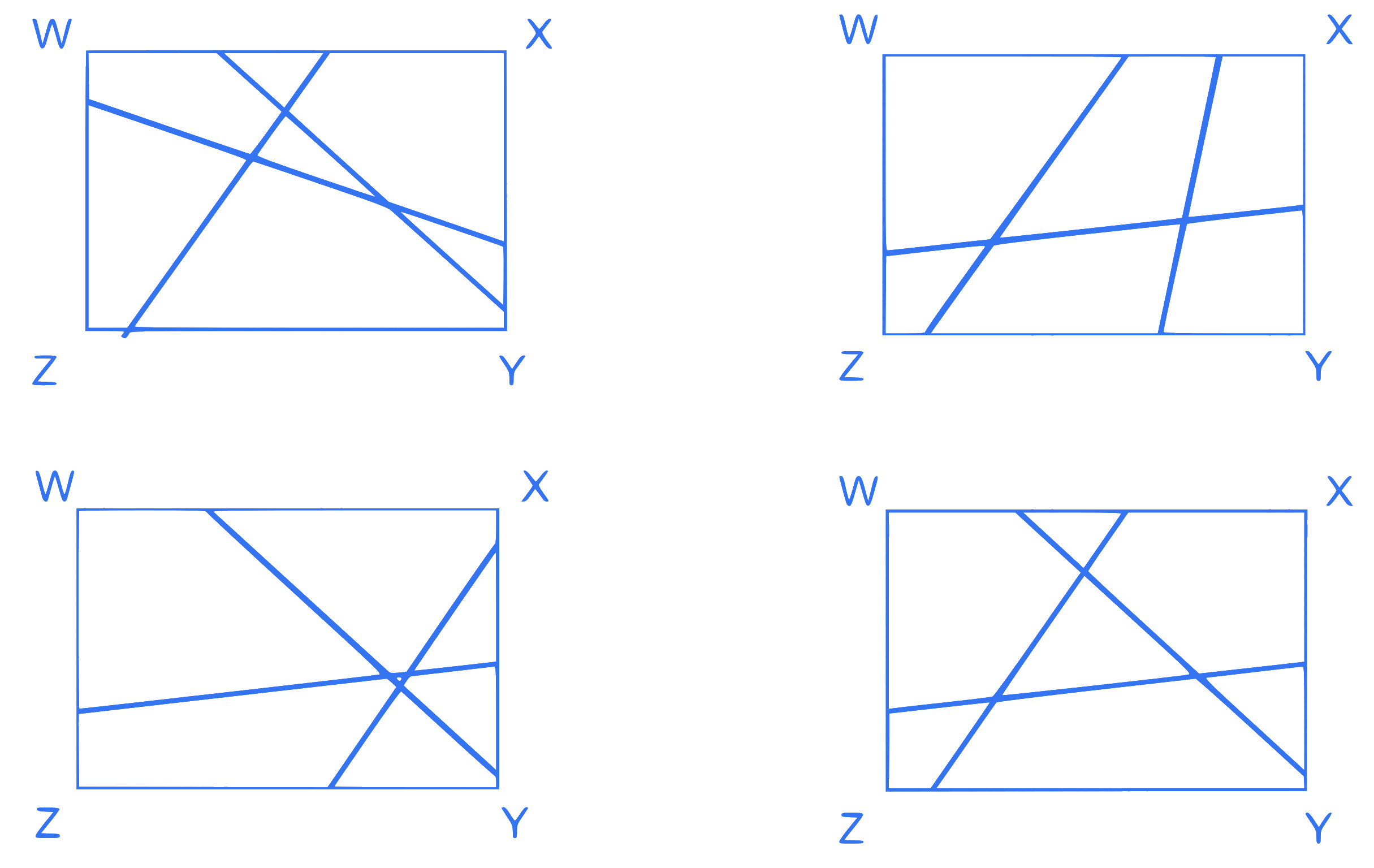

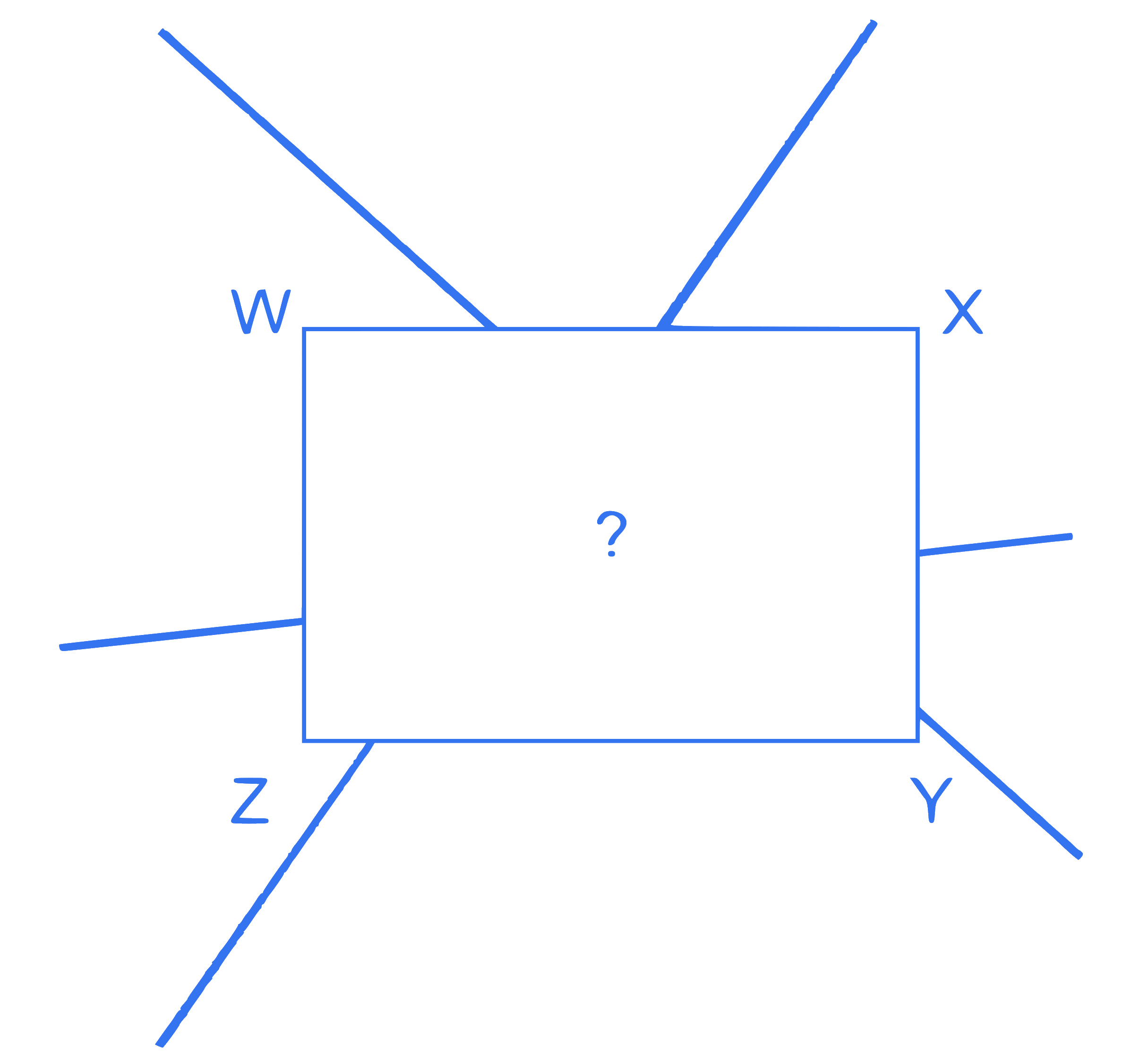

The figure below has exactly three intersecting line segments with a rectangular portion WXYZ missing. Which one of the following options $P, Q, R$, and $S$ is the missing portion WXYZ?

Consider that the concentration of electrons in a semiconductor bar varies linearly from $2 \times 10^{17} \mathrm{~cm}^{-3}$ at $x=1 \mu \mathrm{~m}$ to $1 \times 10^{16} \mathrm{~cm}^{-3}$ at $x=4 \mu \mathrm{~m}$ along the $x$-direction. Assume that the concentration of electrons is not varying along other directions (that is along $y$ and $z$-directions). [Given: the mobility of electron is $1400 \mathrm{~cm}^2 \mathrm{~V}^{-1} \mathrm{~s}^{-1}$, thermal voltage is 25 mV and electronic charge is $1.6 \times 10^{-19}$ Coulomb.] The density of electron diffusion current (in $\mathrm{A} / \mathrm{mm}^2$ ) is $\_\_\_\_$ . (rounded off to two decimal places)

Consider carrier transport in a Zener diode in the breakdown region. Which is the dominant transport mechanism for current flow in this case?

Consider an LED based on a direct bandgap semiconductor material with energy bandgap 1.3 eV . Given: Plank's constant, $h=6.63 \times 10^{-34} \mathrm{~J} \mathrm{~s}$ and speed of light in free space is $3 \times 10^8 \mathrm{~m} \mathrm{~s}^{-1}$. In which of the following wavelength ranges the LED will NOT emit?

Consider a p-n junction diode when it is forward biased with 2 V . Which of the following is/are the correct magnitude(s) of the energy difference between quasi Fermi-levels, $E_{f n}$ in the n -side and $E_{f p}$ in the $p$-side?

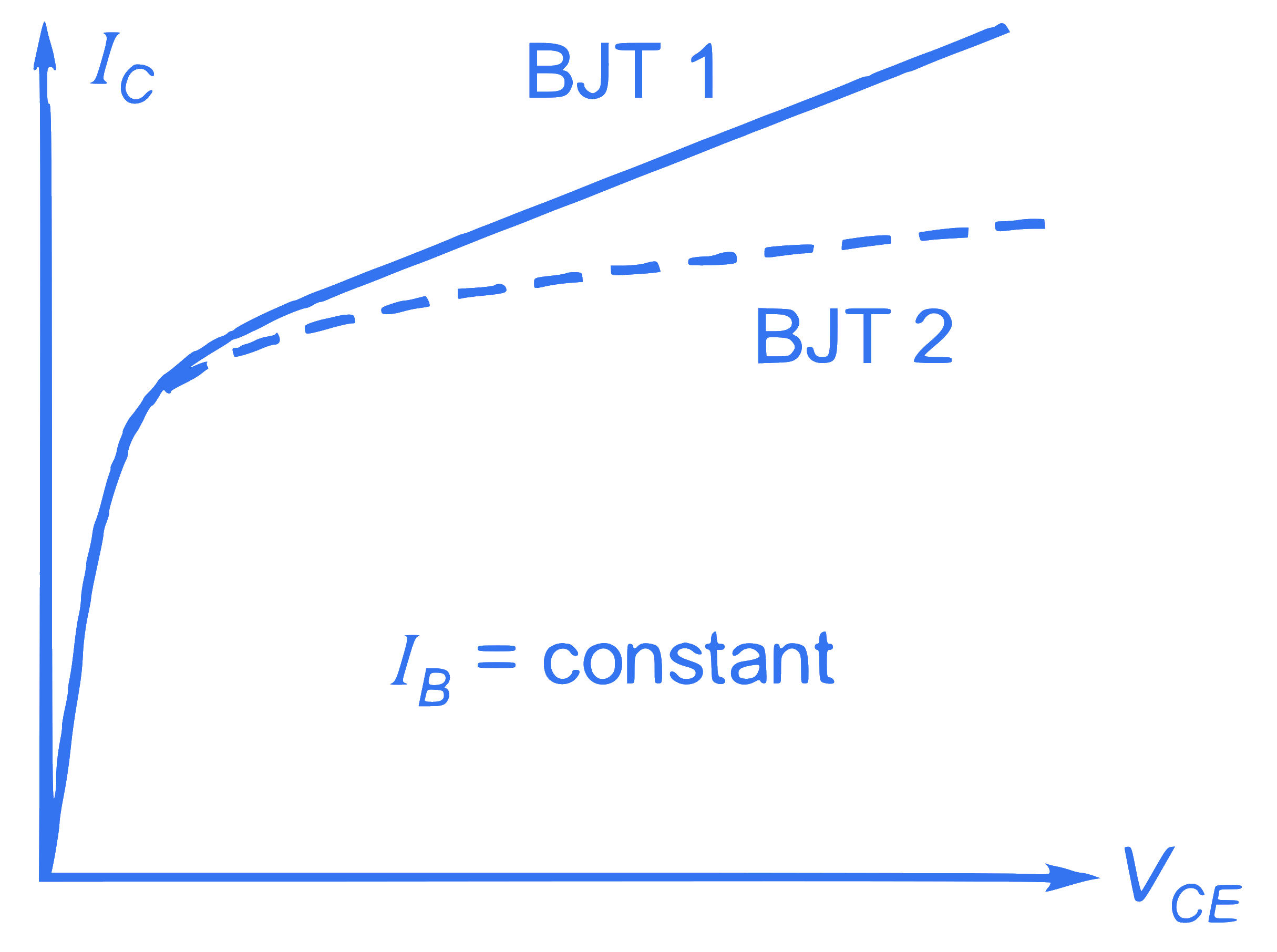

Figure shows the output characteristics of two different Bipolar Junction Transistors (BJT), BJT 1 with magnitude of Early voltage $\left|V_{A 1}\right|$, and BJT 2 with magnitude of Early voltage $\left|V_{A 2}\right|$. Which of the following options is/are correct regarding the Early voltages?

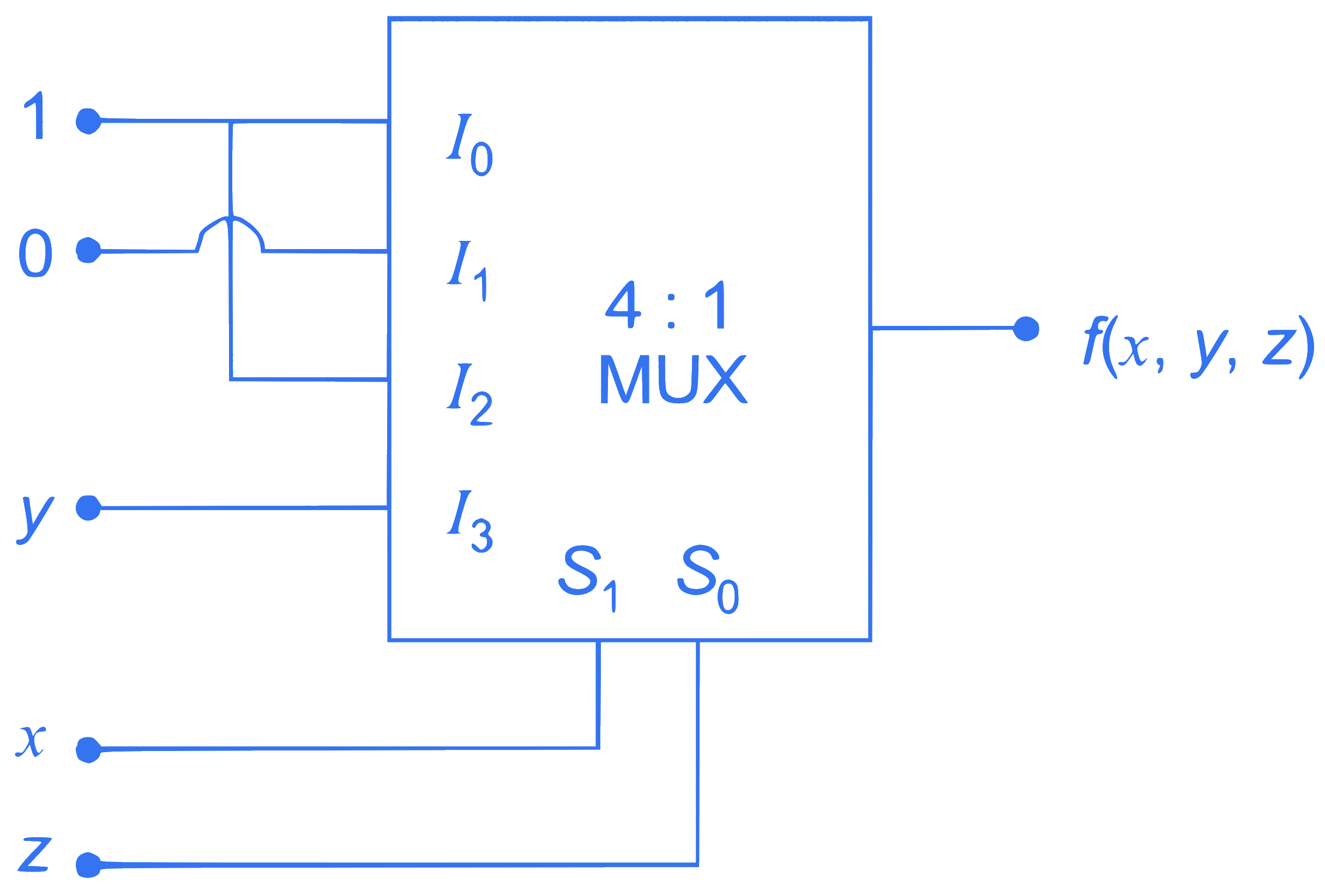

A Boolean function, $f(x, y, z)$ with $x$ as MSB and $z$ as LSB is realized by $4: 1$ multiplexer (MUX) with select lines, $S_1$ and $S_0$ ( $S_1$ is MSB, $S_0$ is LSB) and inputs, $I_0, I_1, I_2, I_3$ as shown in the Figure. Which of the following options is the correct expression of $f(x, y, z)$ ?

A shift-left Shift Register (SR) and a $D$ flip-flop are connected to a synchronized clock as shown in the Figure. Assume that the SR and D flip-flops are initially cleared and the XOR gate has no propagation delay. Which of the following options gives the correct binary representation $\left(b_7 b_6 b_5 b_4 b_3 b_2 b_1 b_0\right)$ of the content of the shift register immediately after the $5^{\text {th }}$ clock transition (positive edge)?

A binary ripple counter is designed to count $(0)_{10}$ to $(64)_{10}$. Which of the following is/are the number of flip-flops required to design the counter?

The negative edge triggered $J K$ flip-flop in the Figure has $J$ and $K$ inputs tied to Logic High and a square wave of 10 cycles/second is applied to its clock $(C)$ input. The frequency of the output $Q$ (in cycles/second) is $\_\_\_\_$ . (rounded off to two decimal places)

Consider the four-variable Boolean function, $f(w, x, y, z)=\Sigma m(0,2,5,7,8,10,13,14,15)$ with ' $w$ ' as MSB and ' $z$ ' as LSB. Which of the following expressions is/are the valid form(s) of $f(w, x, y, z)$ ?

What is the 10 's complement of $(47)_{10}$ ?

In the circuit shown in the Figure, $A$ and $B$ are logic inputs and $Y$ is the logic output. Which of the following logic operations is realized by the circuit?

The average bit error rate at the input of a $(7,4,1)$ Hamming decoder is 0.10 . The probability that the decoder will fail to decode a received word correctly is $\_\_\_\_$ . (rounded off to two decimal places)

A wireless digital transmission scheme is using 16-QAM over an additive white Gaussian noise channel and a maximum-likelihood receiver. Consider the information bit rate from source to be $4 \times 10^6$ bits per second. The minimum transmission bandwidth (in MHz) of the modulated signal necessary for optimum recovery of information at the receiver is $\_\_\_\_$ . (rounded off to two decimal places)

Consider a discrete memoryless source with an alphabet of four source symbols. $s(t)$ is a multi-level ( $-1,0,+1,+2$ ) signal representing a long sequence of random symbols from the above source which is generating $10^4$ symbols per second. Which of the following options is the correct value of equivalent Nyquist bandwidth of $s(t)$ ?
